Body manufactures in bronze with an inlet filter metering valve 0 to 6% with by-pass. The pick up tube needs to be ordered separately.
The foam mixer works on the Venturi principle. The water pressure in the state, creates a vacuum that causes the suction of the liquid. The device has a check valve ball which prevents any return of water into the tank of foam concentrate.
A dispenser valve allows you to adjust the proportion of water / foam from 0% to 6%.
A valve device ensures constant mixing rates, even when the pressure varies.
Article | Description | |

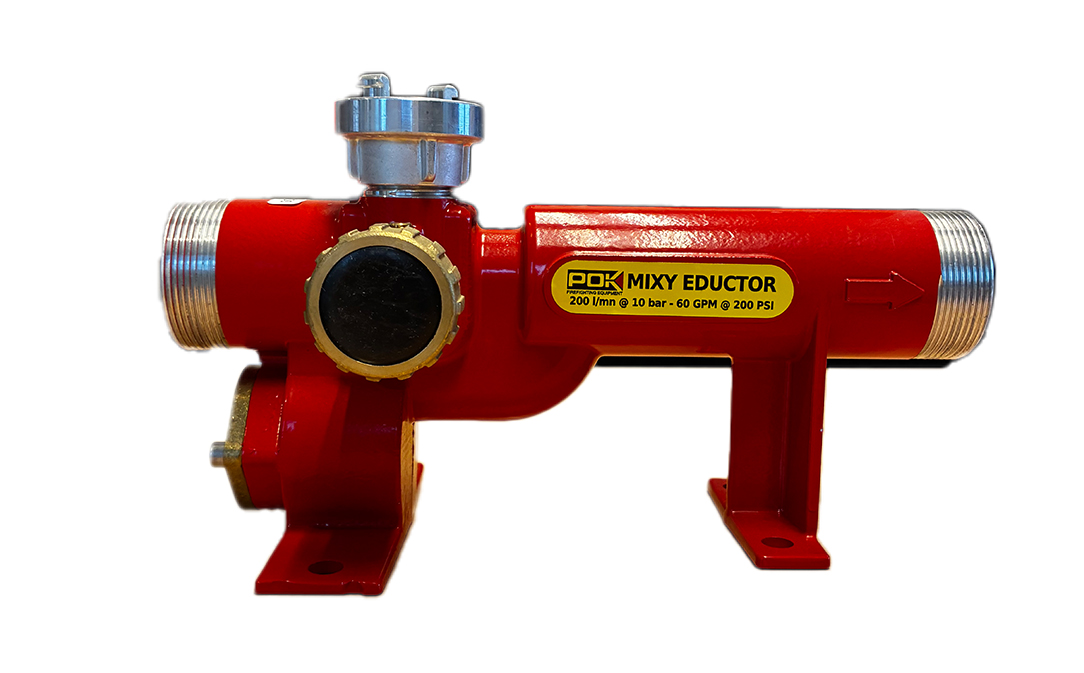

SG01101 | POK Mixy Eductor, 200 liter p/m, excluding coupling | |
SG01102 | POK Mixy Eductor, 400 liter p/m, excluding coupling | |
SG01203 | POK Mixy Eductor, 800 liter p/m, excluding coupling | |
SG01211 | Pick up tube, 1.5 meters LM-N31 including suction bar | |
SG01212 | Pick up tube, 1.5 meters LM-N31 excluding suction bar | |
